WH1354-MZ, Micro-Z Well Water Treatment Point-of-Entry Sediment Filter, 10-16 GPM

$1,120.00 - $1,539.00

Qty Price Ea.
2 $1,270.00
4 $1,195.00
8 + $1,120.00
Price Per Unit
WH1354-MZ$1,120.00 - $1,539.00
$1,120.00 - $1,539.00
  • Clears Up Cloudy Water
  • Fleck Backwashing Control Valve
  • Nominal 5 Micron Filtration
  • Removes Dirt, Rust & Sediment
  • 10 – 16 Gallons Per Minute Flow Rate

Uses for Water Filtration

MicroZ high-performance granular well water treatment filter media that outperforms conventional multimedia due to its unique zeolite structure, 2.8x’s the load capacity of sand. Micro-Z media can handle higher service flow rate and increased load capacity. 5 – 10 micron nominal rating.

MicroZ Automatic Backwashing Sediment Filters are designed to remove ferric iron (rust), silt, and turbidity. This system is sized for a large house with 4 or 5 bathrooms.

WH1354-MZ, Micro-Z Well Water Treatment Point-of-Entry Sediment Filter, 10-16 GPM Features:

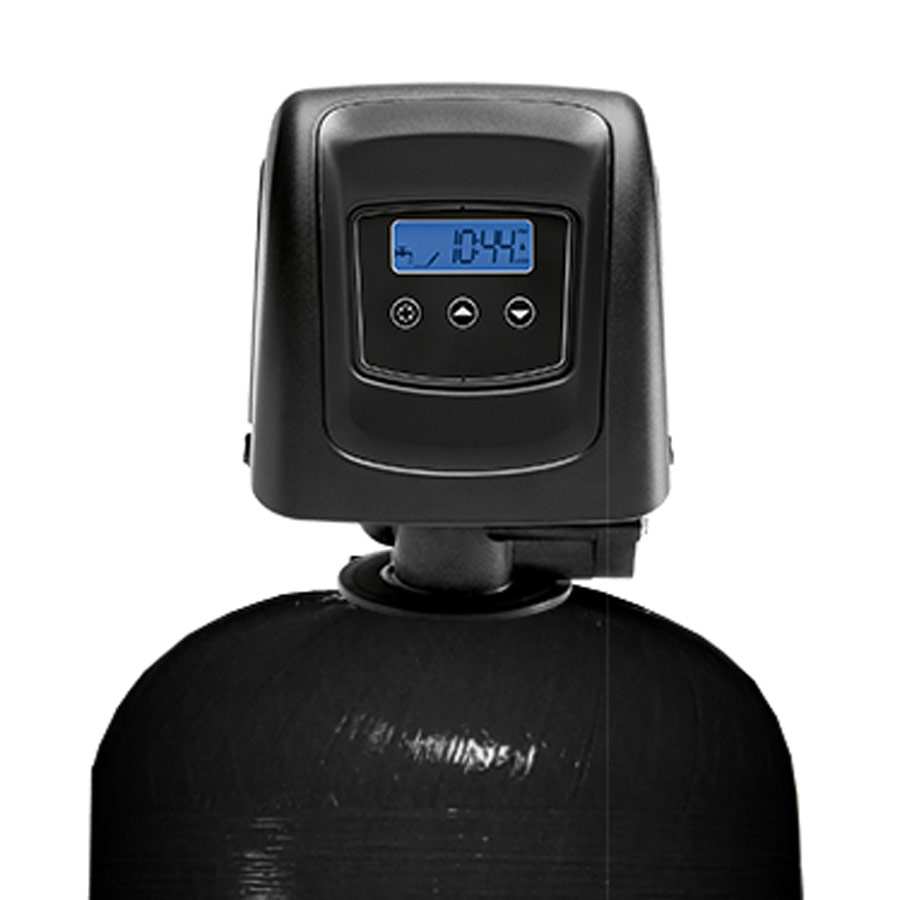

  • Fleck 5800 Digital Backwashing Control
  • Structural Polyglass Tank
  • Micro-Z Uses 50% Less Water for Backwashing Compared to Sand Filters
  • Nominal 5 – 10 Micron Filtration
  • Media Never Needs to be Replaced!
  • No Chemicals or Salts Used
  • 1″ MPT Noryl Yoke Standard Connection & Bypass Valve
well water treatment filter drastically reduces cloudy water due to debrisCloudy water due to dirt and debris in the water.

Well Water Assembly Diagram

Well water system assembly instructions included with this system.

Additional information

Amount of Media

2.5 Cu. Ft.

Gallons Per Minute

10-16 GPM

Material Composition

,

Media Type

Media Bed Life

Unlimited

Tank Size

Country of Origin

WH1354-MZ
Controller Type: Fleck 5800SXT Amount of Media: 30 LBS / 2.5 Cubic Feet
Media Tank Type: Structural Polyglass Service / Peak Flow: 10 / 16 GPM
Media Tank Size: 54" (H) × 13" (D) Operating Pressure: 20 - 125 PSI
Overall System Height: 63.5" Operating Temperature: 36 - 120° F
Media Replacement: Never Shipping Weight: 196 LBS

WH1354-MZ Well Water System Installation

Download
