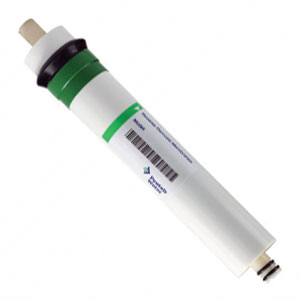

Pentair 50 GPD Thin Layer Composite Reverse Osmosis Membrane

$35.00 - $41.00

Qty Price Ea.
6 $39.00
12 $37.00
25 + $35.00
Price Per Unit
TLC-50$35.00 - $41.00
$35.00 - $41.00
  • 50 Gallons Per Day
  • Removes a wide variety of Inorganic & Organic Compounds

Pentair’s Residential Membranes use an industry leading state-of-the-art TLC (Thin Layer Composite) membrane providing high quality water for a broad range of water chemistries. Each membrane is required to meet our factory’s strict performance requirements prior to shipment.

Features:

  • TLC Thin Layer Composite membrane
  • 100% dry membrane maximizing shelf life
  • High rejection stability at high input TDS
  • Standard dimensions to fit in commonly available housings

Pentair Membranes are interchangeable with Filmtec, GE, CSM & other standard size membranes. Upgrade your reverse osmosis system today to a top performing Pentair membrane and enjoy saving money.

Model Number Part Number Nominal Performance
Flow* GPD (LPD)
Rejection Rate
GRO-50EN 4004424 50 (189) 96%
GRO-75EN 4004425 75 (284) 96%
TLC-24 655006-00 24 (91) 98%
TLC-36 655007-00 36 (136) 98%
TLC-50 555694-00 50 (189) 98%
TLC-75 555693-00 75 (284) 98%
TLC-100 655045-00 100 (378) 98%

(*Nominal performances are based on a 500 ppm softened tap at 65 psig (4.48 bar), 77°F (25°C), 15% recovery after 24 hours. Individual element flux may vary +/- 15%.)

Pentair Membrane Dimensions
Model Number Dimensions: Inches (Centimeters)
A B C D E
TLC-24 1.79 (4.55) 11.75 (29.85) 10.00 (25.40) 0.875 (2.22) 0.678 (1.72)
TLC-36 1.79 (4.55) 11.75 (29.85) 10.00 (25.40) 0.875 (2.22) 0.678 (1.72)
TLC-50 1.79 (4.55) 11.75 (29.85) 10.00 (25.40) 0.875 (2.22) 0.678 (1.72)
TLC-75 1.79 (4.55) 11.75 (29.85) 10.00 (25.40) 0.875 (2.22) 0.678 (1.72)
TLC-100 1.83 (4.65) 11.75 (29.85) 10.35 (26.30 0.875 (2.22) 0.678 (1.72)

Operational Limits

  • Maximum Pressure: 100 PSI (6.90 bar)
  • Maximum Temp.: 120°F (49°C)
  • pH: 4-11
  • Free Chlorine: 0.1 pp

Additional information

Gallons Per Day
