UV Lamp/Sterilight QS-012 UV Quartz Sleeve Replacement Instructions
Viqua Quartz Sleeve for these systems:
- Sterilight Model S12Q-PA
- Sterilight Model SSM-39
- Sterilight Model S12Q/GOLD
- Sterilight Model S24Q/GOLD
- Sterilight Model S40Q
- Sterilight Model SUV 24P-100P
- Sterilight Model SHF-140
- Sterilight Model SHFM-140
- Hydrosafe Model HSUV-SS-12-1 (made by Sterilight)
- Hydrosafe Model HSUV-SS-24-1 (made by Sterilight)

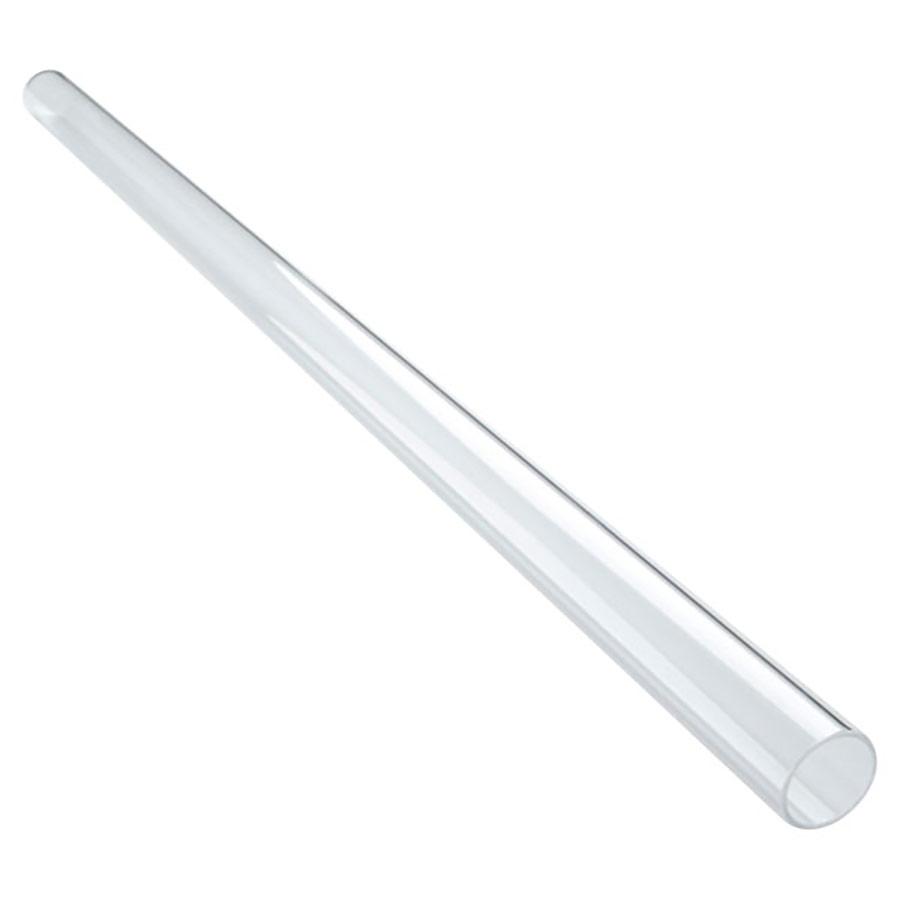

Sterilight QS-012 UV Quartz Sleeve Replacement:
All Sterilight UV systems include a quartz sleeve, which surrounds the lamp. The quartz material used in Viqua’s quartz sleeves are a 100% fused silica which lend to the sleeve’s high transmittance. A high transmittance is important as the UV light must travel through the sleeve to get to the water.
There are a variety of quartz sleeve designs, depending on the system that they are being used in. The QS-212 is an open ended quartz sleeve which is used in the Silver series. All replacement sleeves are shipped with two o-rings.
