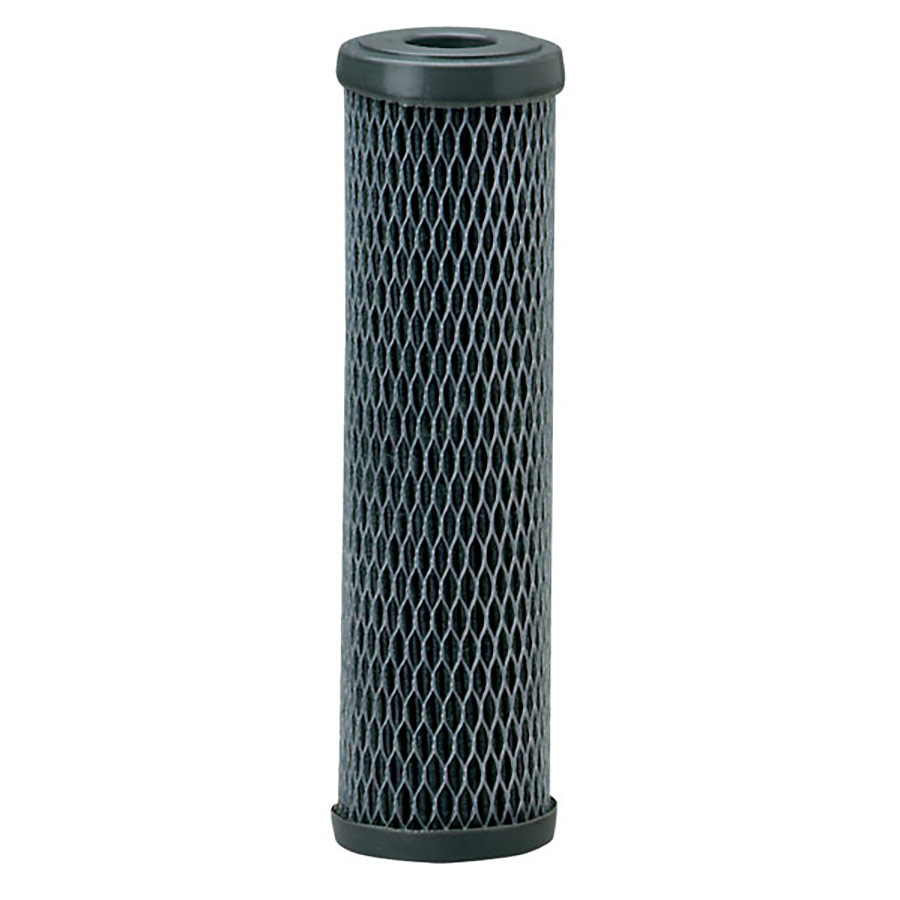

This is a 10″ x 2-1/2″, 10 micron Pentek NCP Series pleated water filter.
NCP Series cartridges are constructed from carbon-impregnated non-cellulose media. They offer sediment filtration, taste, odor, and chlorine taste and odor reduction in one cartridge. Unlike cellulose cartridges, NCP Series cartridges are resistant to bacterial attack, allowing them to be used for municipal and non-chlorinated water applications.
Pleats provide additional surface area for high dirt-loading capacity while maintaining minimal pressure drop. This combination of pleated polyester media and carbon filtration produces an outstanding filter cartridge with extended service life.
NCP Series cartridges are excellent polishing filters and closed-loop streams, ideal for post-reverse osmosis and well water applications.
Pentek NCP Series Pleated Water Filter, 10″ x 2-1/2″, 10 Micron Features:
- Non-cellulose media resists bacterial attack
- Provides sediment filtration and chlorine taste & odor reduction
- Pleated for maximum dirt-loading capacity

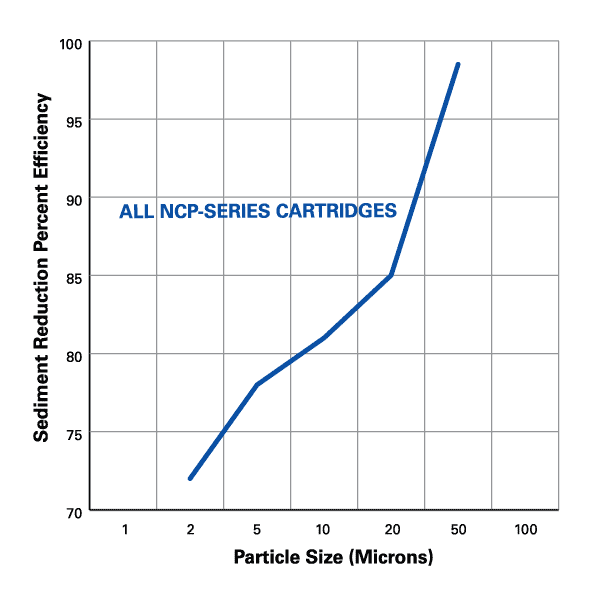

- Nominal 10-micron rating

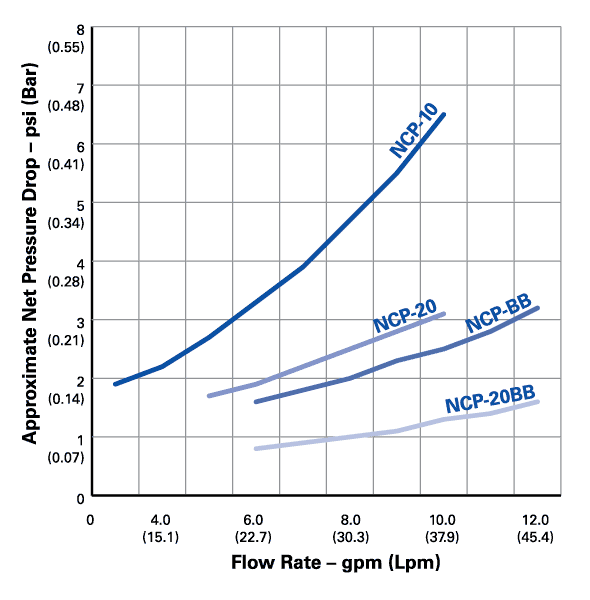

| Model | Maximum Dimensions | Micron Rating | Initial ΔP @ Flow* | Chlorine Capacity @ Flow* |
|---|---|---|---|---|
| NCP-10 | 10″ × 2-1/4″ | 10 | 2 psid @ 3.0 GPM | >225 gal @ 1.0 GPM |
| NCP-20 | 20″ × 2-1/4″ | 10 | 2 psid @ 5.0 GPM | >450 gal @ 2.0 GPM |
| NCP-BB | 9-3/4″ × 4-1/2″ | 10 | 2 psid @ 8.0 GPM | >500 gal @ 2.0 GPM |
| NCP-20BB | 20″ × 4-1/2″ | 10 | 1 psid @ 10.0 GPM | >1,000 gal @ 4.0 GPM |
* Based on manufacturer’s internal testing.
