Sold in Case of (15) Cartridges
50 Micron Removal of Dirt, Rust & Sediment

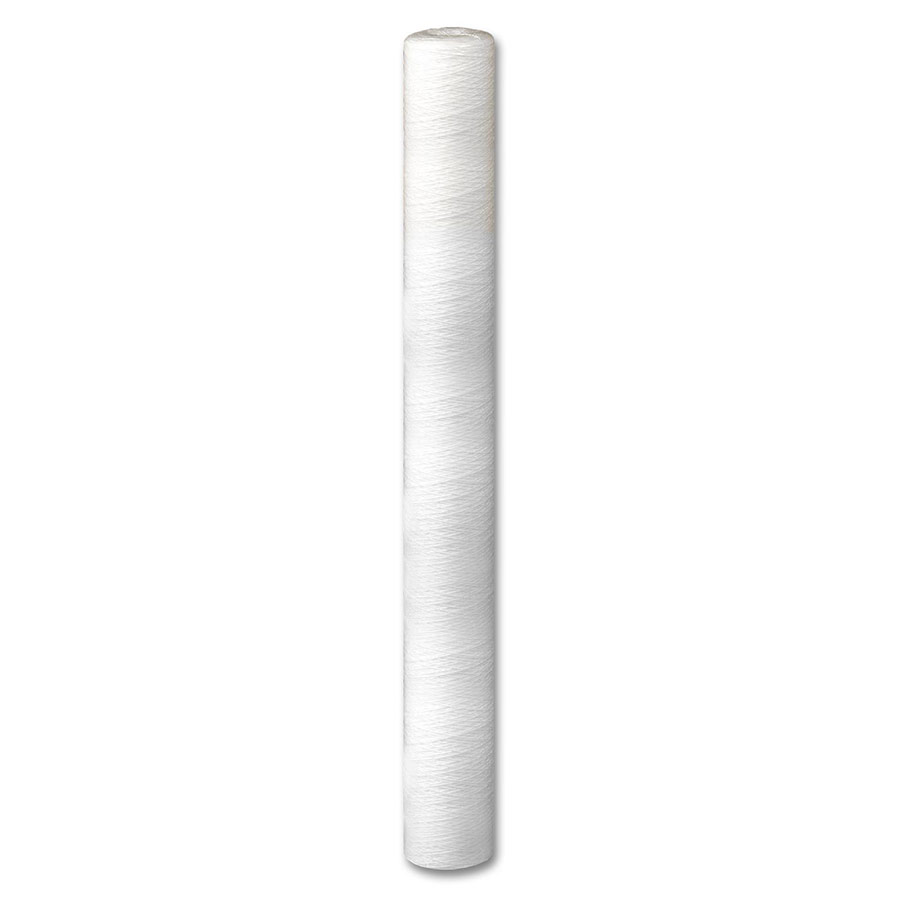

Industry Standard Size 30" × 2.5" Sediment Cartridge
Industry Standard Size 30" × 2.5" Sediment Cartridge
Shelco has created the MicroSentry cartridge, setting a higher standard for industries requiring cartridge filtration. Shelco equipment makes achieving precision patterns a matter of standard procedure. State of the art computerized production machinery takes the variables out of custom winding and enables production of filter cartridges that are accurately wound from a single strand of specially selected fibrous roving material, wound around a perforated core in a nearly perfect geometric pattern.
Features and Benefits:
- Polypropylene fibers for purity and chemical compatibility
- Meets FDA requirements for food & beverage contact
- Standard cartridges rated for temperatures to 140°F
- High temp cartridges available with stainless steel center tubes
- Packaged in individual poly bags for cleanliness
- Available in wide range of lengths and micron ratings
| Example Ordering Guide with Options | |||
|---|---|---|---|
| MS | 10 | C | S |
| Product Code | Length | Media | Core |
| MS |
10=10" 20=20" 30=30" 40=40" |
B=Fribilated Polypropylene
C=*FDA Bleached Cotton E=Polyester F=*FDA Polypropylene G=Glass Fiber N=Nylon P=Industrial Polypropylene R=Rayon U=Natural Cotton W=Industrial Bleached Cotton |
P=Polypropylene S=304 Stainless Steel G=316 Stainless Steel T=Tin Steel |
| 10
–
|
N | 2
–
|
EXP |
|---|---|---|---|
| Micron | Core Cover | Diameter | End Treatment |
|
0.5 1 3 5 10 20 25 30 50 75 100 150 |
Blank=None N=Non-Woven W=Woven |
Blank=2-1/2" 2=2" 3=2-3/8" 4=2-3/4" 45=4-1/2" |
EXP=PP Core Extender EXS=SS Core Extender S3=222 w/ Fin End S4=222 w/ Flat End S5=226 w/ Fin End S6=226 w/ Flat End S8=SOE w/ Spring S12=222 w/ Spring EPR=EPR Gaskets B=Buna Gaskets F=Fin End Only FL=Flat End Only |
*FDA cotton and poly meet the FDA guidelines as acceptable for potable and edible liquid contact according to CFR title 21.
Cap Options
