0.35, 1, 5, 10, 20, 50, 100 or 150 Micron Removal of Dirt, Rust & Sediment

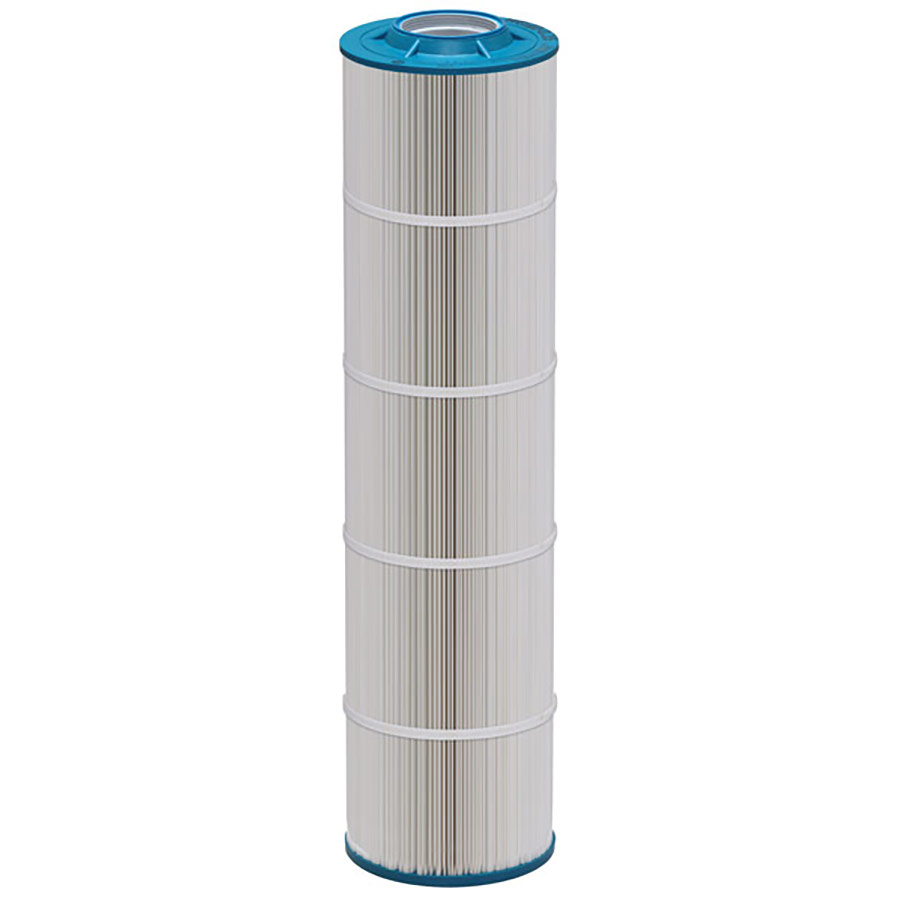

Model 170 Jumbo 30.75" × 7.75" Sediment Cartridge
Model 170 Jumbo 30.75" × 7.75" Sediment Cartridge
Highly efficient filter cartridges made of pleated Polyester-Plus filter media. The industry’s largest surface area.
Features & Benefits:
- Fewer cartridges for fewer change-outs and lower maintenance cost
- Pleated Polyester-Plus filter media provides higher flow rates and lower initial pressure drop
- Pleated surface area provides higher loading capacity for longer filter life and increased particle removal
- End cap, center tube and media are thermally bonded as one integral component for added strength
- Offered in three sizes (40, 90 and 170) and eight micron ratings (0.35, 1, 5, 10, 20, 50, 100 and 150) to meet all your high flow requirements
Specifications:
- Filter media – Polyester-Plus
- Temperature – 140°F (standard cartridges) / 200°F (high temp. cartridges)
- Flow rate – 105 GPM
- Media (sq ft) – 170
Hurricane Comparison
| Model | Micron | Media (sq ft) | Flow Rate (GPM) | Max Flow Rate (GPM) |
|---|---|---|---|---|
| HC-170-0.35 | 0.35 | 170 | 105 | 150 |
| HC-170-1 | 1 | 170 | 105 | 150 |
| HC-170-5 | 5 | 170 | 105 | 150 |
| HC-170-10 | 10 | 170 | 105 | 150 |
| HC-170-20 | 20 | 170 | 105 | 150 |
| HC-170-50 | 50 | 170 | 105 | 150 |
| HC-170-100 | 100 | 170 | 105 | 150 |
| HC-170-150 | 150 | 170 | 105 | 150 |
