This Pentek Big Blue 20″ x 4.5″ 5 micron carbon block filter is from the EP Series.
EP Series carbon briquette cartridges are manufactured using a patented process that yields a cartridge with a nominal 5-micron filtration rating, high dirt-holding capacity. A high porosity design helps prevent the cartridge from plugging before its adsorption capacity is exhausted, maximizing the utilization of the carbon while maintaining low pressure drop.

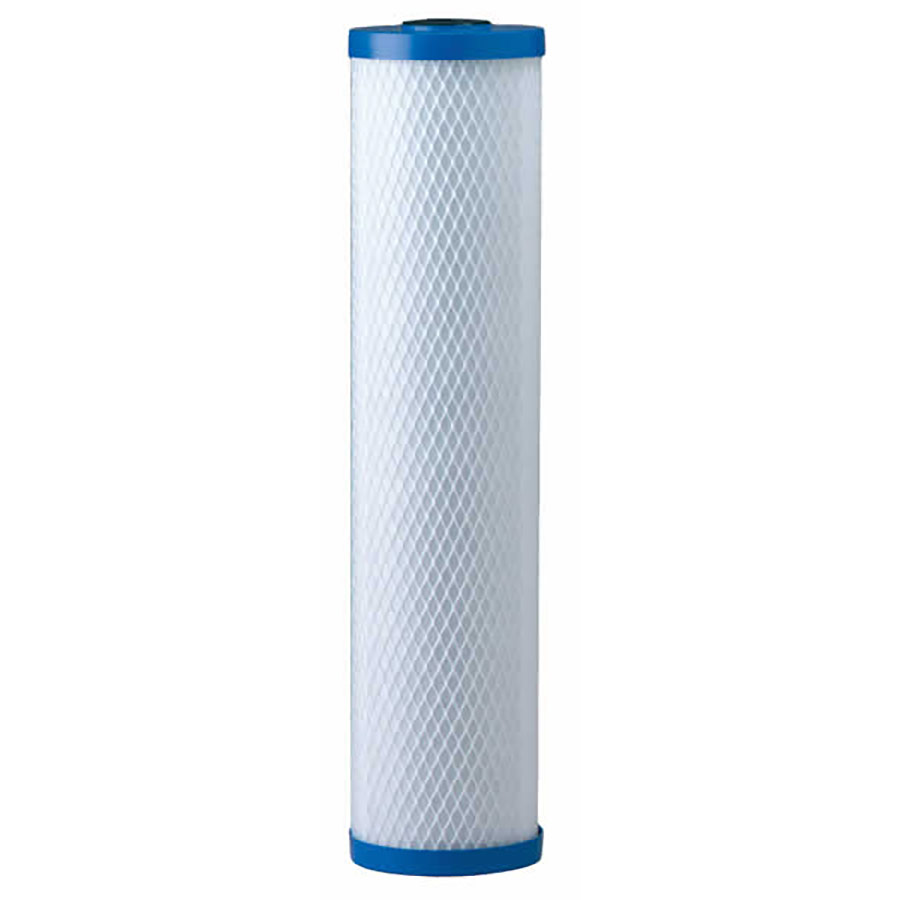

Pentek Big Blue 20″ x 4.5″ 5 Micron Carbon Block Filter, EP Series
These cartridges are protected by Endurawrap, a uniquely formulated polyolefin bilaminate pre-filter, designed to significantly increase the useful life of the cartridge by trapping sediment that typically plugs carbon block cartridges.
EP Series cartridges are manufactured entirely from FDA-compliant materials making them an ideal choice for a wide range of residential, food service, commercial and industrial applications.
- Pentek is the largest brand in the filtration industry
- Pentek is the originator of carbon block production technology
- Pentek is the largest producer of carbon blocks worldwide

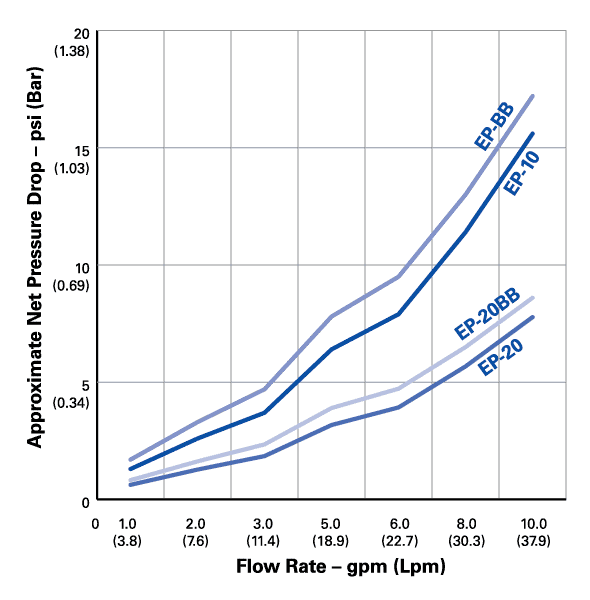

| Model | Maximum Dimensions | Nominal µm Rating* | Initial ΔP @ Flow* | Chlorine Capacity @ Flow* |
|---|---|---|---|---|
| EP-10 | 9-3/4″ × 2-7/8″ | 5 µm | 3.4 psid @ 1.0 GPM | >6,000 gal @ 1.0 GPM |
| EP-20 | 20″ × 2-7/8″ | 5 µm | 3.4 psid @ 2.0 GPM | >12,000 gal @ 2.0 GPM |
| EP-BB | 9-3/4″ × 4-5/8″ | 5 µm | 4.3 psid @ 2.0 GPM | >22,000 gal @ 2.0 GPM |
| EP-20BB | 20″ × 4-5/8″ | 5 µm | 5.5 psid @ 5.0 GPM | >40,000 gal @ 4.0 GPM |
* Based on manufacturer’s internal testing.
