Need replacement parts? This system uses the below lamp, sleeve, or combo. Get top-tier customer service from the H2O team anytime!
Protect Your Family, Employees & Customers
Ultraviolet Sterilization Effectively Kills Bacteria, Viruses and Parasites such as Cryptosporidium & Giardia. Chlorination only keeps bacteria at low levels. The difference between Chlorination and UV is the difference between Sanitization and Sterilization. UV Sterilization provides complete protection for your family, employees and customers, from Microbes in your water.
It is estimated that seven to 30 million Americans develop a gastrointestinal illness each year, from drinking contaminated water. The Center for Disease Control and Prevention estimates 900 to 1,000 deaths occur from microbial illnesses from US drinking water. You can Protect Your Family, Company and Customers health, simply, easily and inexpensively by adding a UV Sterilization System to your home.

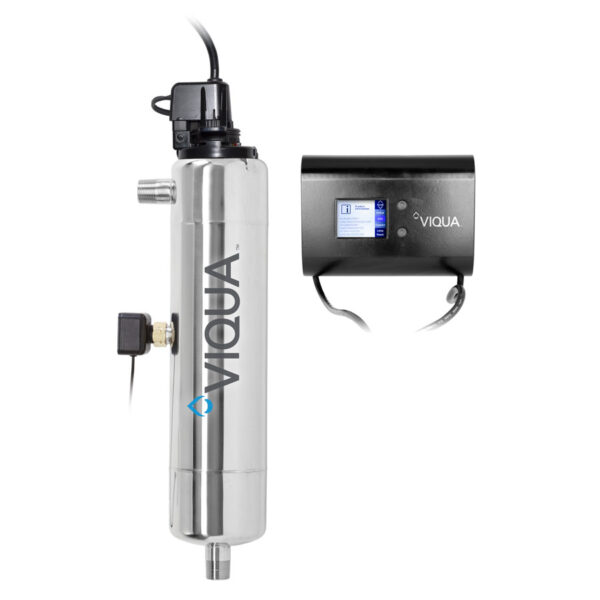

You need the ultraviolet sterilizer system 12 GPM with UV intensity monitor, Viqua D4 Plus home series for your home!
UV Max Model D4 Plus has an LED display showing lamp replacement reminder in days & UV Intensity Monitor with diagnostic test feature.
Model D4 Plus must be used with a CoolTouch Fan kit sold separately at the bottom of this page.
UV Max Model D4 Plus also has all the standard features of Model D4, including a controller with water resistant case, indicator lights on the power source showing the status of each system component. A stainless steel chamber with safety cap (can not be removed while light is on) and special lamp plug are standard.
Model D4 Plus features a lamp timer reset button and mute button to silence audio alarm, along with lamp life display counter.
UV Max Model D4 Plus offers the advanced features that used cost much more. With disinfection available at 9-23 GPM, Model D4 Plus is ideal for household or light commercial use.
All UV Max Systems include all components and accessories needed for initial installation and use. These include UV Lamp, Electronic Ballast, Quartz Sleeve & 304 Stainless Steel UV Reactor (Water Chamber).
UV Max Systems treat the water for the whole home, eliminating 99.99% of bacteria and viruses including chlorine-resistant cysts that are not tested for in routine water tests (such as Cryptosporidium and Giardia)
How does Ultraviolet Sterilization Work?
The germicidal energy of ultraviolet light destroys harmful microorganisms by attacking their genetic core (DNA). This powerful dose of UV light eliminates their ability to reproduce, and the organisms simply die.
Water is purified by running it through a watertight chamber that contains an ultraviolet lamp. As water flows past, microorganisms are exposed to a lethal dose of germicidal UV energy.
Purification with the UV Max is a safe, natural process that adds no chemicals and does not affect the taste or odor of your water.
Specialized, high output UV lamps maximize the output of germicidal UV energy.
Ultraviolet Sterilizer System 12 GPM with UV Intensity Monitor, Viqua D4 Plus Home Series Features
- Audible/ Visual Lamp Failure Alarm
- No-tools Maintenance
- Safety Cap
- Electronic Power Supply
- Mounting Bracket
- 3/4″ MNPT Connections
Operating Parameters
- Iron less than 0.3 ppm
- Hardness less than 7 grains (120 ppm)
- UV transmittance greater than 75%
