UV Lamp/Quartz Sleeve Replacement Instructions
UV Max Quartz sleeve replacement for these systems:
- UV Max Model C
- UV Max Model C4 (650692)
- UV Max Model D
- UV Max Model D4 (650694)
- UV Max Model D4 PLUS (650695)
- UV Max Model D4 Premium (660089-R)
Available as a combo (602810-102), consists of these parts:
- 602805 Replacement Lamp

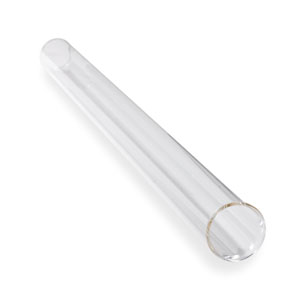

- 602732 Replacement Sleeve
All UV Max systems include a quartz sleeve, which surrounds the lamp. The quartz sleeve provides thermal protection for the UV lamp and protects it from possible water damage. The quartz material used in VIQUA quartz sleeves are a 100% fused silica which lend to the sleeve’s high transmittance. A high transmittance is important as the UV light must travel through the sleeve to get to the water. There are a variety of quartz sleeve designs, depending on the system that they are being used in.
