158601 10″ Pentek Filter Housing, 3G Slim Line w/ 1/4″ Ports

$35.00

  • Accepts 10″ X 2.5″ Cartridges
  • 1/4″ FNPT Connections
  • Pressure Rating to 125 PSI
  • NSF Certified
  • Pressure Release Button
  • Housing Includes Cap, Sump and O-Ring Only
  • Mounting Hardware and Wrench Sold Separately

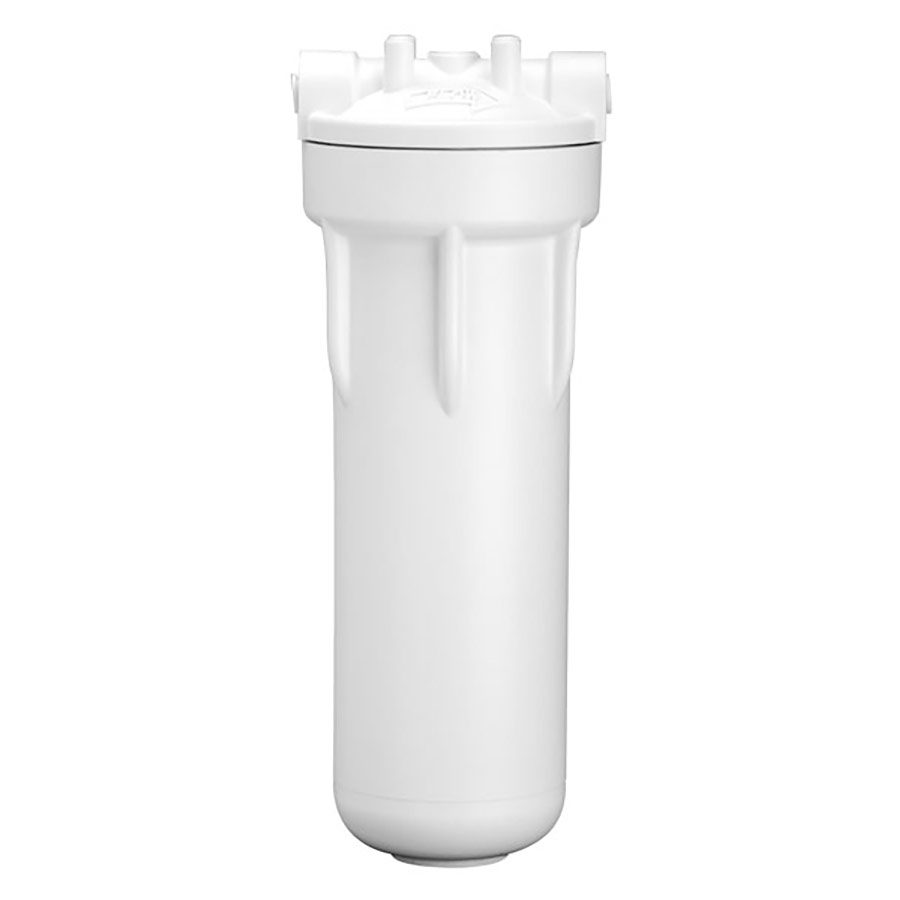

The 3G Slim Line 158601 10″ Pentek filter housing with 1/4″ ports accepts 10″ x 2.5″ cartridges.

Slim Line filter housings are an excellent choice for low-flow applications and when space and chemical compatibility are primary concerns.

158601 10″ Pentek Filter Housing, 3G Slim Line w/ 1/4″ Ports Features:

  • Standard 10″ Cartridge Length
  • 1/4″ FNPT Ports
  • White Polypropylene Housing with White Cap
  • Slim Design Reduces Space Required for Installation without Sacrificing Capacity
  • FDA Grade
  • Pressure Release Button
  • Leak-proof Seal with Top-Seated O-Ring

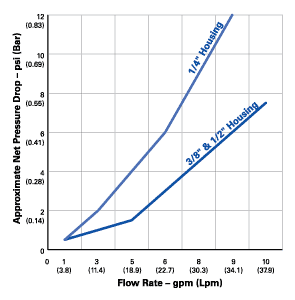

Pentek 3G Slim Line Flowchart for the 158601 10" Pentek Filter Housing

Additional information

Port Size

Color

Cartridge Housing Size

Material Composition

Pentek 3G Slim Line Series Filter Housing Specifications

Download

Parts / Accessories
