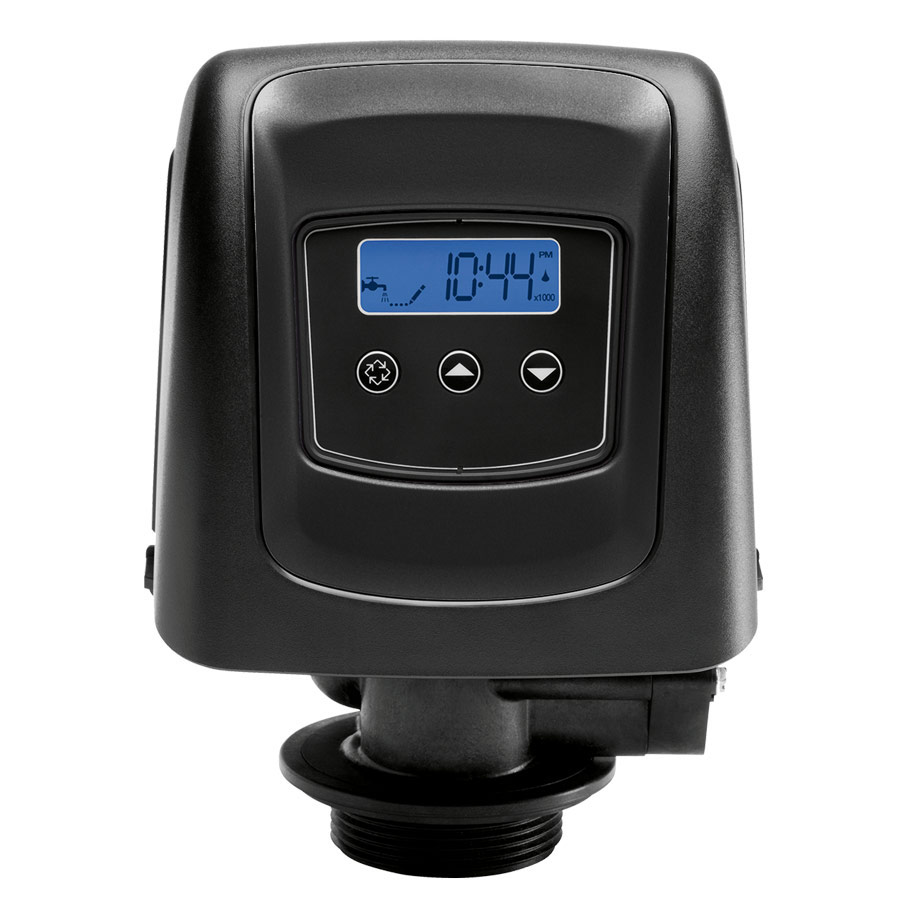

Fleck 5800 Timer Control Valve

Model #: Fleck 5800

Download Specifications Download Downflow/Upflow Service Manual (Standard)

Model #5800 (Comp. Monitored Ctrl)

Product Features

  • Fiber-reinforced polymer valve body for superior strength and durability, non-corrosive, and UV-resistant
  • Continuous service flow rate of 21 GPM with a backwash of 17 GPM
  • Backwash capability accommodates softener tanks up to 16" and filter up to 16" in diameter
  • Fully adjustable 3- or 5-cycle control for efficient and reliable water treatment system
  • Time-tested, hydraulically-balanced piston for service and regeneration
  • Optical sensor for precision cycle positioning
  • Soft water refill for a cleaner brine tank
  • Designed with double backwash for reduced hardness leakage
  • Diagnostics for historical valve performance
  • Programming stored in memory and will not be lost due to power outages

Options

  • Filter or softener control valves
  • Downflow co-current or upflow counter-current regeneration
  • Plumbing connections in 3/4" to 1-1/4" NPT, BSP, and sweat
  • Fiber-reinforced polymer or stainless steel bypass valve
  • Variable reserve for increased efficiency
  • Programmable regeneration types for increased flexibility
  • Three color bezel options of black, silver, or blue

Valve Specifications

Valve material: Fiber Reinforced Polymer Inlet/Outlet: 3/4", 1", 1-1/4" NPTF
Cycles: 5

Flow Rates (50 psi Inlet) – Valve Alone

Continuous (15 psi drop): 20 GPM Peak (25 psi drop): 26 GPM
CV (flow at 1 psi drop): 5.0 Max. backwash (25 psi drop): 7 GPM

Regeneration

Downflow/Upflow: Both Adjustable cycles: Yes
Time available: Up to 199 minutes per cycle

Meter Information (not applicable to timer model)

Meter accuracy range: .25 – 15 GPM ± 5% Meter capacity range (gal.): 1 – 999,900

Dimensions

Distributor pilot: 1.05" pipe O.D. Drain line: 1/2" NPTF
Brine line: 1600 – 3/8" Mounting base: 2-1/2" – 8 NPSM
Height from top of tank: 9.0"

Typical Applications

Water softener: 6"-16" diameter Sediment filter: 8"-16" diameter

Additional Information

Electrical rating: 12 v Estimated shipping weight: Time clock: 7 lbs.
Metered valve: 10 lbs.
Pressure: Hydrostatic: 300 psi
Working: 20 – 125 psi		 Temperature: 34 – 110 °F

Approvals

WQA Gold Seal system: 0.5 – 2.0 cu. ft. UL (powerhead only)
