DIY Water Filter: How to Make a Water Filter

Make an Emergency/Makeshift Water Filter

On a Season 5 episode of the popular, post-apocalyptic television show “The Walking Dead” a group of survivors find themselves out of clean water in an unfamiliar area. The character Rosita makes a DIY water filter by cutting off the bottom of an empty plastic bottle and filling it with sand and rocks. She then begins to slowly pour cloudy water from a nearby stream through it. The episode didn’t show the necessary step of sterilizing the water after filtering (whether through boiling, disinfection with a chemical agent such as bleach, or UV exposure to sunlight).

This DIY water filter method does work and can keep you heathly if clean potable water or a manufactured water filter system are unobtainable. It is important to try and find the cleanest water available, and under no circumstances should you try and filter sewage runoff or irradiated water using this process. In a non-emergency situation, a reverse osmosis system, under sink system, countertop or gravity filter would be the way you would want to filter your drinking water.

Materials Needed

Plastic bottle or comparable food-safe container
Another container for clean water
Clean cotton or cheese cloth
Coffee filter or porous cloth
Charcoal
Sand (fine and coarse)
Gravel or pebbles

Step 1 – Cut Bottom Off

Use scissors or a knife to cut off the bottom part of the bottle you will be putting the filter material in.

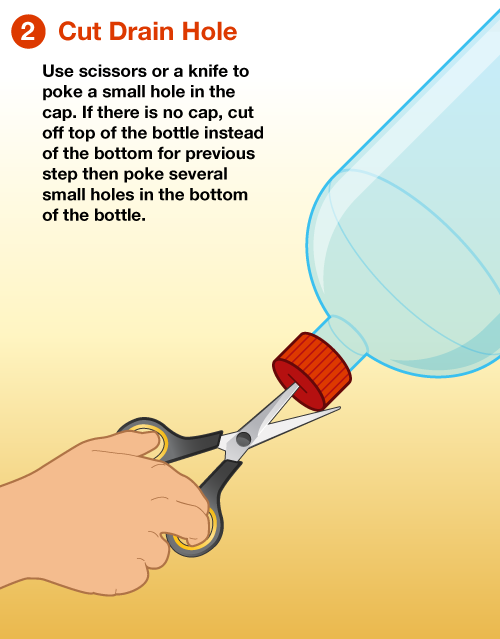

Step 2 – Cut Drain Hole

Use scissors or a knife to poke a small hole in the cap. If there is no cap, cut off top of the bottle instead of the bottom for previous step then poke several small holes in the bottom of the bottle.

Step 3 – 1st Layer: Straining Fabric

Stuff the bottom of bottle with a fine cloth or paper fabric, such as a coffee filter, cheese cloth or cotton stuffing.

Sand and grass can also be used in this first stage. Fill the bottom with about 3 inches of grass clippings to filter out larger particulates and help give water a clean taste from chlorophyll contained in the grass. Then fill with 3-4 inches of very fine sand.

Be careful not to use poisonous or unidentified weeds when collect grass clippings. Do not use Highway Department sand, as it can be full of road salt and chemicals.

Step 4 – Break Up Charcoal

Take charcoal from campfire or BBQ charcoal (do not use match/instant light type because it’s soaked in chemicals) and use hammer or rock to break it down into smallest particles you can.

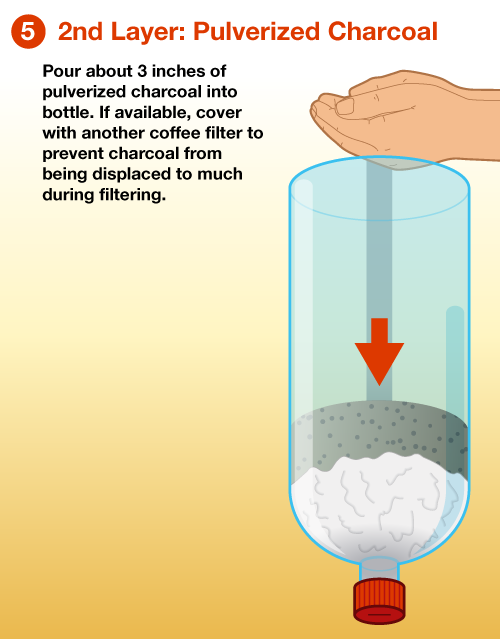

Step 5 – Layer 2: Pulverized Charcoal

Pour about 3 inches of pulverized charcoal into bottle. If available, cover with another coffee filter to prevent charcoal from being displaced to much during filtering.

Step 6 – 3rd Layer: Fine Sand

Add a 2-3 inch layer of the finest sand you can find. This and the subsequent layers you will add are to filter out particulates in the water.

Do not use Highway Department sand, as it can be full of road salt and chemicals.

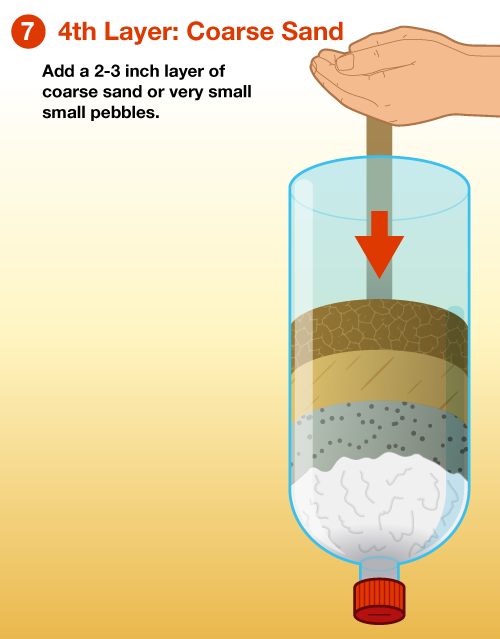

Step 7 – 4th Layer: Coarse Sand

Add a 2-3 inch layer of coarse sand or very small small pebbles.

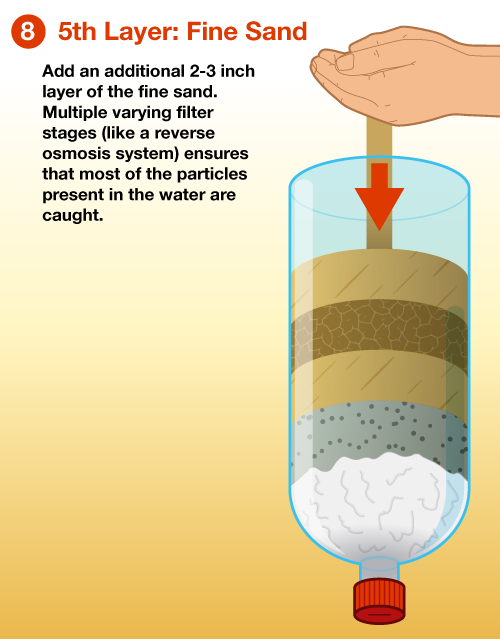

Step 8 – 5th Layer: Fine Sand

Add an additional 2-3 inch layer of the fine sand. Multiple varying filter stages (like a reverse osmosis system) ensures that most of the particles present in the water are caught.

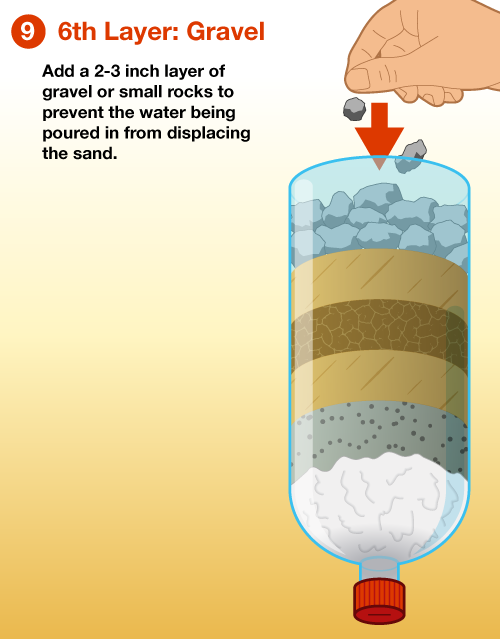

Step 9 – 6th Layer: Gravel

Add a 2-3 inch layer of gravel or small rocks to prevent the water being poured in from displacing the sand.

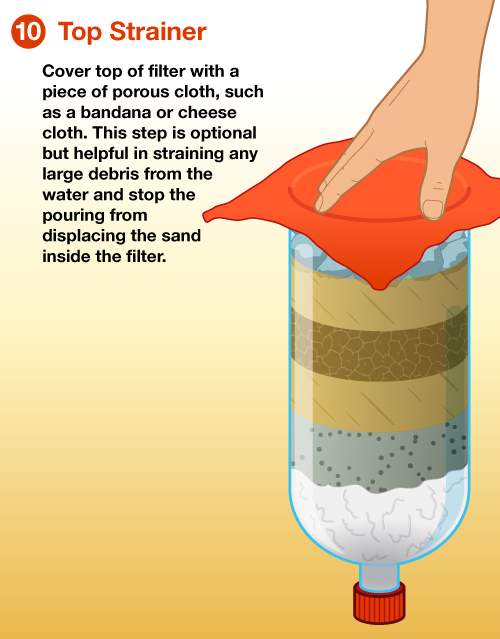

Step 10 – Top Strainer

Cover top of filter with a piece of porous cloth, such as a bandana or cheese cloth. This step is optional but helpful in straining any large debris from the water and stop the pouring from displacing the sand inside the filter.

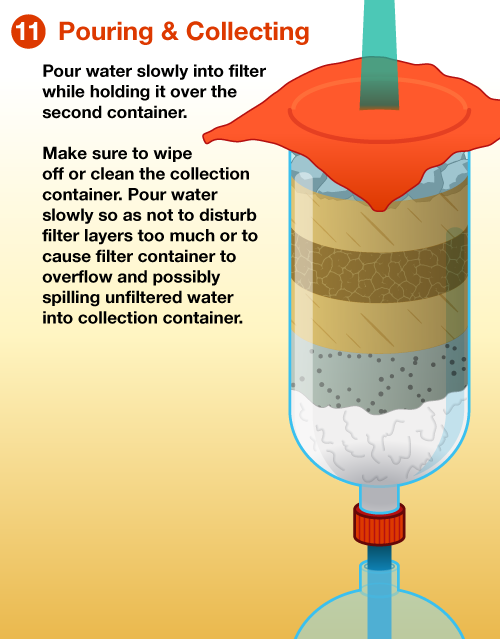

Step 11 – Pouring & Collecting

Pour water slowly into filter while holding it over the second container.

Make sure to wipe off or clean the collection container. Pour water slowly so as not to disturb filter layers too much or to cause filter container to overflow and possibly spilling unfiltered water into collection container.

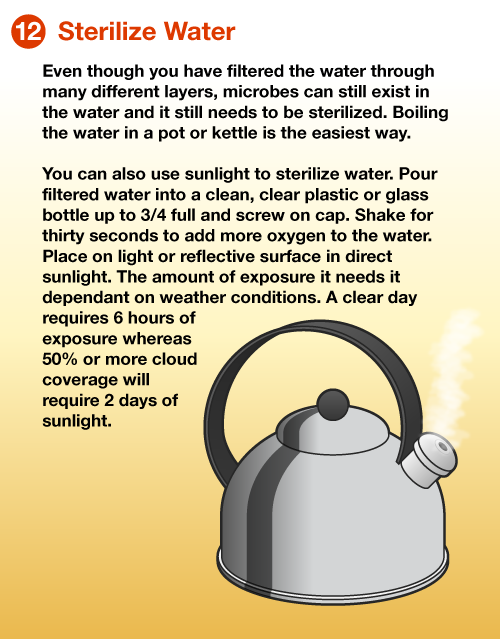

Step 12 – Sterilize Water

Even though you have filtered the water through many different layers, microbes can still exist in the water and it still needs to be sterilized. Boiling the water in a pot or kettle is the easiest way.

You can also use sunlight to sterilize water. Pour filtered water into a clean, clear plastic or glass bottle up to 3/4 full and screw on cap. Shake for thirty seconds to add more oxygen to the water. Place on light or reflective surface in direct sunlight. The amount of exposure it needs it dependant on weather conditions. A clear day requires 6 hours of exposure whereas 50% or more cloud coverage will require 2 days of sunlight. Here is a DIY water filter!
